 COATING THICKNESS GAUGE |
|

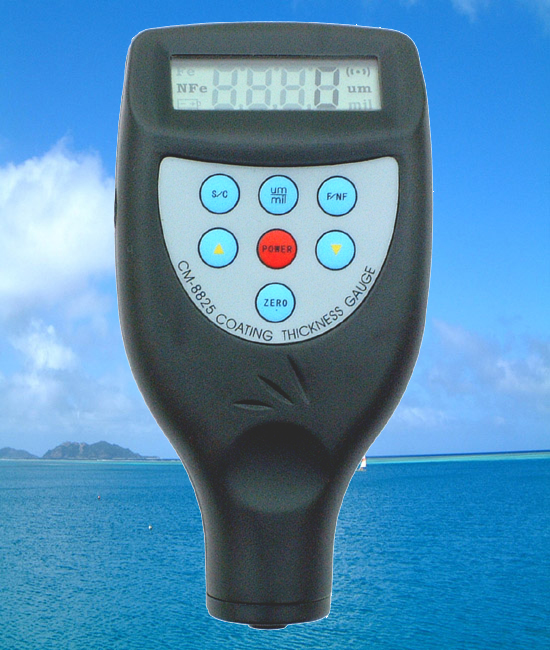

COATING THICKNESS METER TG-8825 |
|
|
|
| Product synopsis |
| FUNCTION: TG-8825F (FERROUS SUBSTRATE) TG-8825N (NON FERROUS SUBSTRATE)
TG-8825FN (2 IN 1, F & NF TYPE) |
| MEASURING PRINCIPLE£ºMAGNETIC INDUCTION& EDDY CURRENT MEASUREMENT |
| RANGE£º0¡«200um/500um /1000um/2000um IN BUILT PROBE (INTEGRATED PROBE) |
| RESOLUTION£º0.1 um(under 100um) 1um (over 100um) |
| ACCURACY: ¡À1¡«3%n or ¡À3um PROBE TYPE |
| RECOGNITION: MANUAL (FOR TG-8825FN) MEASUREMENT |
| MODE: SINGLE DATA |
| OUTPUT: RS232C INTERFACE (OPTIONAL) POWER |
| SUPPLY: 4x1.5V AAA(UM-4)BATTERY 2 SHUTDOWN |
| MODELS: MANUAL/AUTOMATIC |
| DIMENSION: 131x65x28mm |
| Application: 1. TG-8825F can measure the thickness of non-magnetic coating
layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel,
iron, alloy and magnetic stainless steel) 2. TG-8825N can measure the thickness of
non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer)
covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless
steel) |
|
